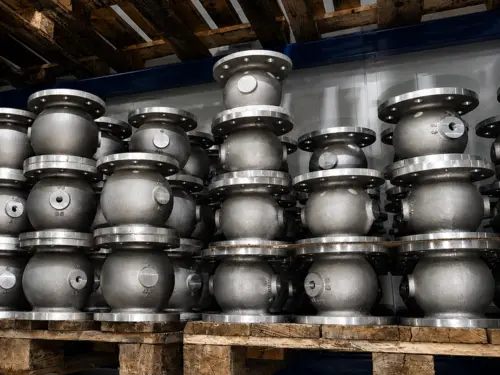

PQVF with flanged connection
PREMAFLEX Pinch Valves – Metal Version
PREMAFLEX metal pinch valves are designed for heavy-duty industrial applications. They are particularly suitable for abrasive, viscous and solids-laden media, and their simple design makes them a reliable, low-maintenance solution for shutoff and control.
Standard PQVF pinch valves are available in nominal diameters from DN 40 to DN 200. Our cost-effective standard PQVF series pinch valves consist of a GG20 grey cast iron body with two clamping flanges, also made of GG20 grey cast iron, and a highly elastic rubber sleeve with fabric reinforcements.
The rubber sleeve is centred within the body and is held in place by clamping flanges, which press against it on both sides. Consequently, only four components and a few hexagon head screws are required to produce a fully functional PREMAFLEX pinch valve.
In addition, PREMA-SERVICE offers a range of housing and flange materials, as well as different grades of sleeve, to cater for a wide variety of applications.
Data – PREMAFLEX PQVF pinch valves
| Size: | DN 40–200 |
| Max. operating pressure: | 4–6 bar |
| Valve body: | Grey cast iron GG20 or aluminium |
| Clamping flanges: |
|
| Sleeve: | Depends on the medium |
| Connection dimensions in accordance with: |
|

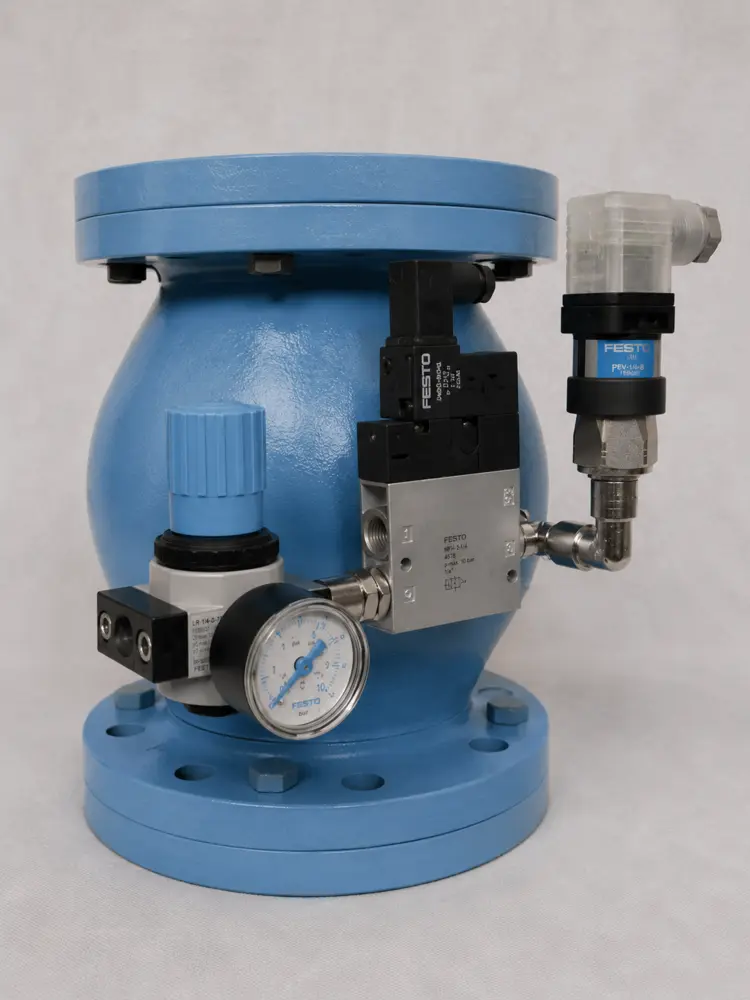

| Accessories: | Control and monitoring units |

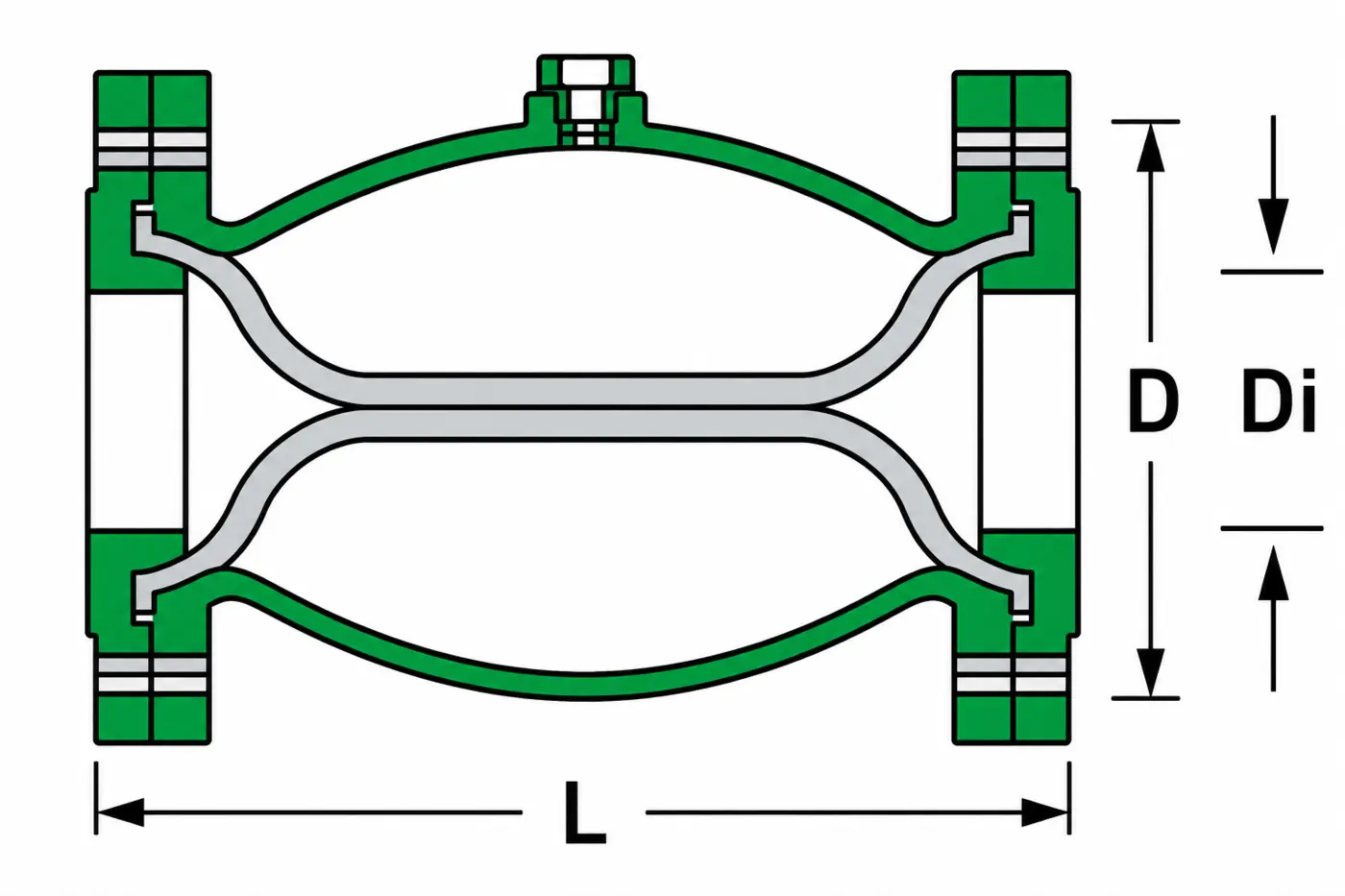

Dimensions of the PREMAFLEX PQVF series of pinch valves
| DN | L | D | DI |
|---|---|---|---|
| 40 | 156 | 150 | 40 |
| 50 | 167 | 165 | 45 |
| 65 | 184 | 185 | 60 |
| 80 | 226 | 200 | 75 |
| 100 | 282 | 220 | 95 |
| 125 | 350 | 250 | 120 |
| 150 | 420 | 285 | 145 |
| 200 | 559 | 340 | 195 |
Compact metal pinch valves with internal threads

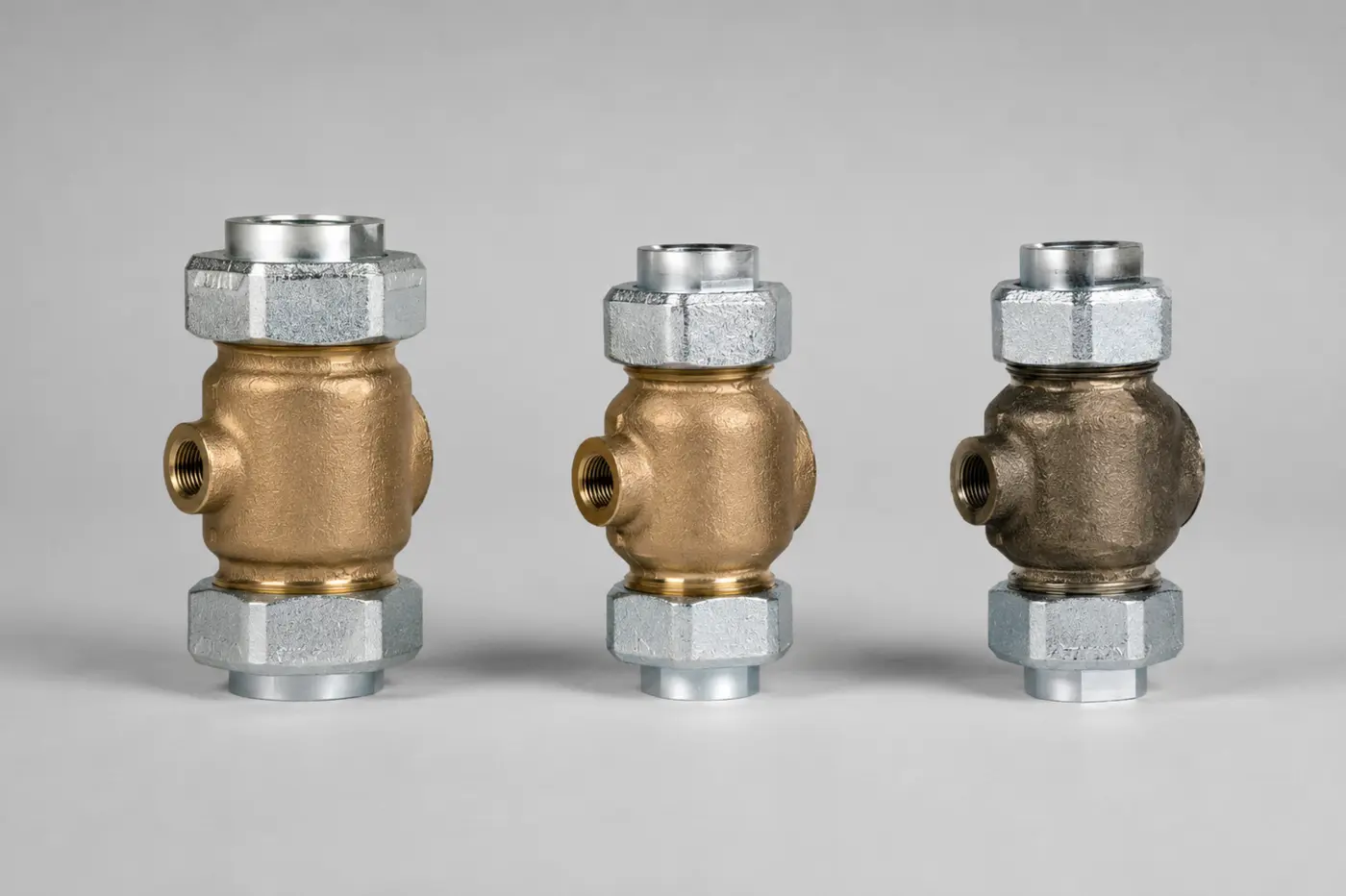

PREMAFLEX PQVI Metal Pinch Valves

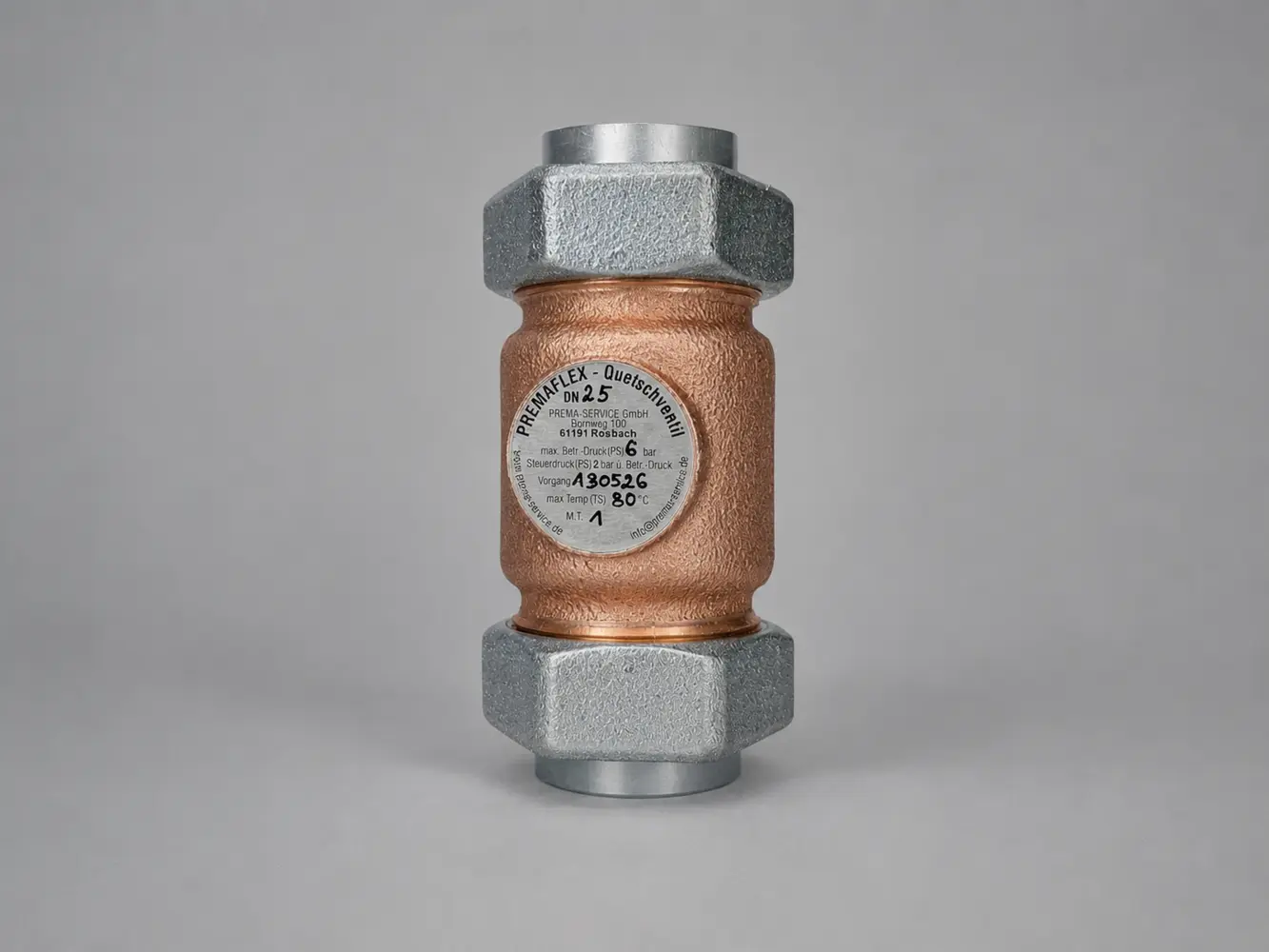

Our PQVI series pinch valves are available in nominal diameters DN 20 (G 3/4″) and DN 25 (G 1″). The PQVI series pinch valve consists of a housing, two clamping pieces and two union nuts, as well as a rubber sleeve. The rubber sleeve is centred within the housing and is held in place by the clamping pieces and union nuts, which compress it on both sides. This means that only six components are required for a fully functional PREMAFLEX pinch valve. The valve can be installed in any position.
Data – PREMAFLEX metal pinch valves with internal thread, type PQVI
| Size: | DN 20 / DN 25 |
| Overall length: | DN 20 = 140 mm DN 25 = 150 mm |
| Weight: | DN 20 = 1.2 kg DN 25 = 1.9 kg |
| Connection on both ends: | Socket connection to DIN 228 (G) DN 20 = G ¾” DN 25 = G 1″ |
| Sleeve connection material: | Galvanised steel or stainless steel |
| Valve body material: |
|
| Max. operating pressure: | 6 bar |
| Control air pressure: | 2–2.5 bar higher than the operating pressure |
| Control air connection: | G 3/8″ |
