DN 10 to DN 250

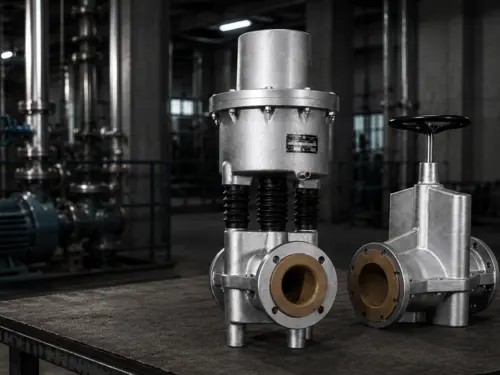

Handwheel & Spring-Return Shut-Off Valves

PREMAFLEX handwheel and spring-return shut-off valves are used wherever there is no compressed air supply or where a defined safety position is required. Spring-return valves open when compressed air is applied and close automatically in the event of a pressure failure. Handwheel valves are available in aluminium or cast iron, with flange dimensions in accordance with DIN or other standards.

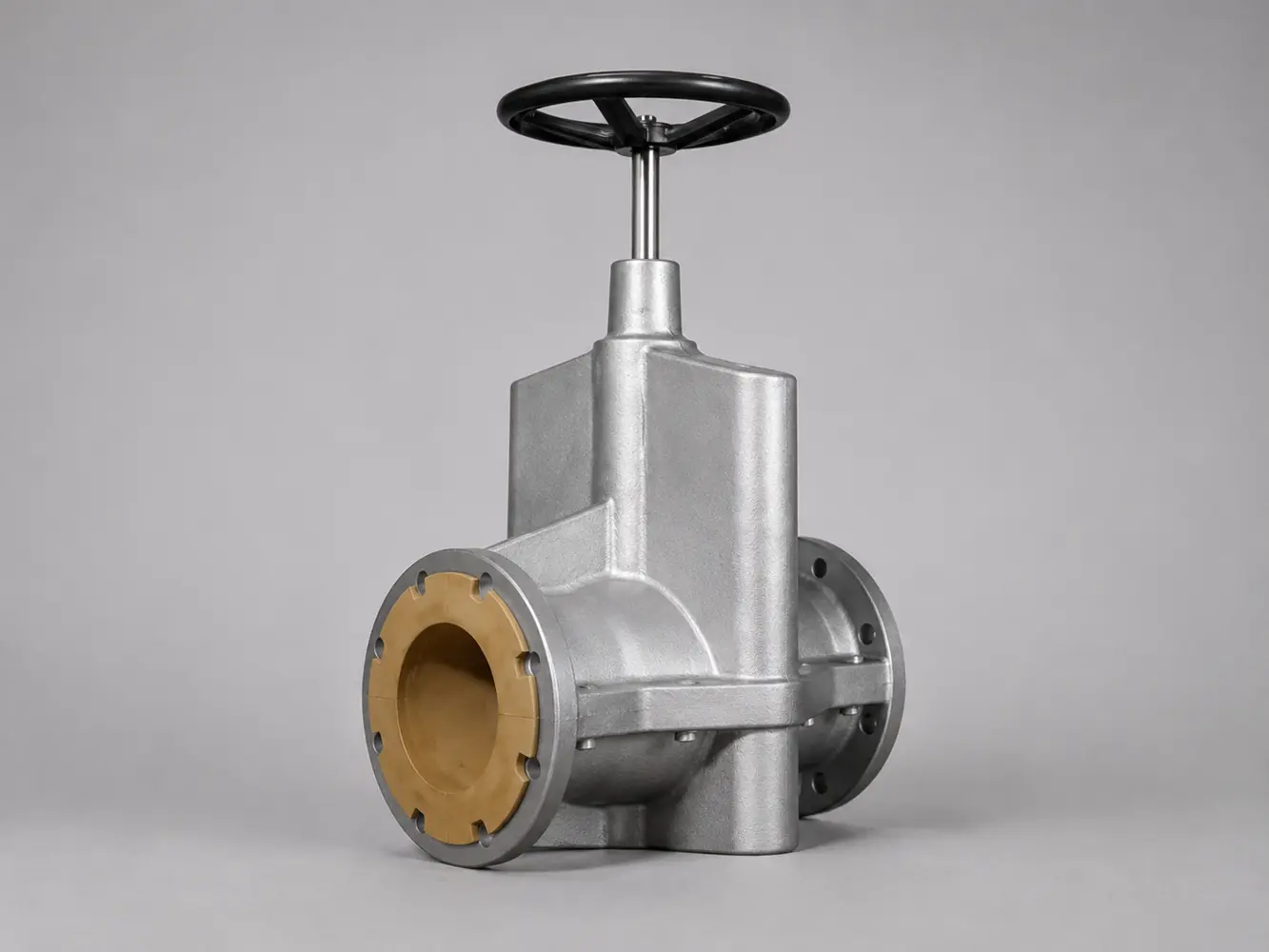

Overview of handwheel valves

Size:	DN 10 to DN 250
Max. operating pressure:	between 2 and 10 bar (depending on size)
Material	Aluminium or cast iron with anti-corrosion protection
Flexible sleeve:	Natural rubber or synthetic elastomer grades
Flange dimensions:	in accordance with DIN 2532-ND 10 or UNI 2223-PN 10-16 Optional: in accordance with various standards
Length across flanges	in accordance with DIN 3202 F1 standards Optional: short type

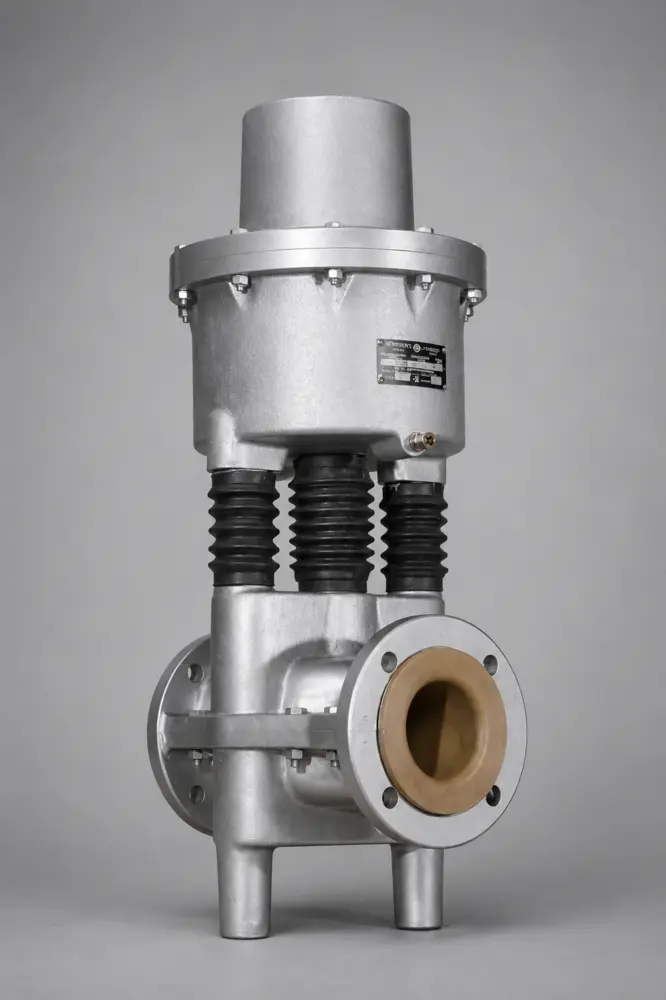

Overview of spring-loaded shut-off valves (safety valves)

Size:	DN 10 to DN 250
Function:	Spring-loaded closing, compressed air opening (safety valve)
Max. operating pressure:	between 2 and 8 bar (depending on size)
Material	Aluminium or cast iron with corrosion protection
Flexible sleeve:	Natural rubber or synthetic elastomer grades
Flange dimensions:	in accordance with DIN 2532-ND 10 or UNI 2223-PN 10-16 Optional: in accordance with various standards
Length across flanges	in accordance with DIN 3202 F1 standards Optional: short type

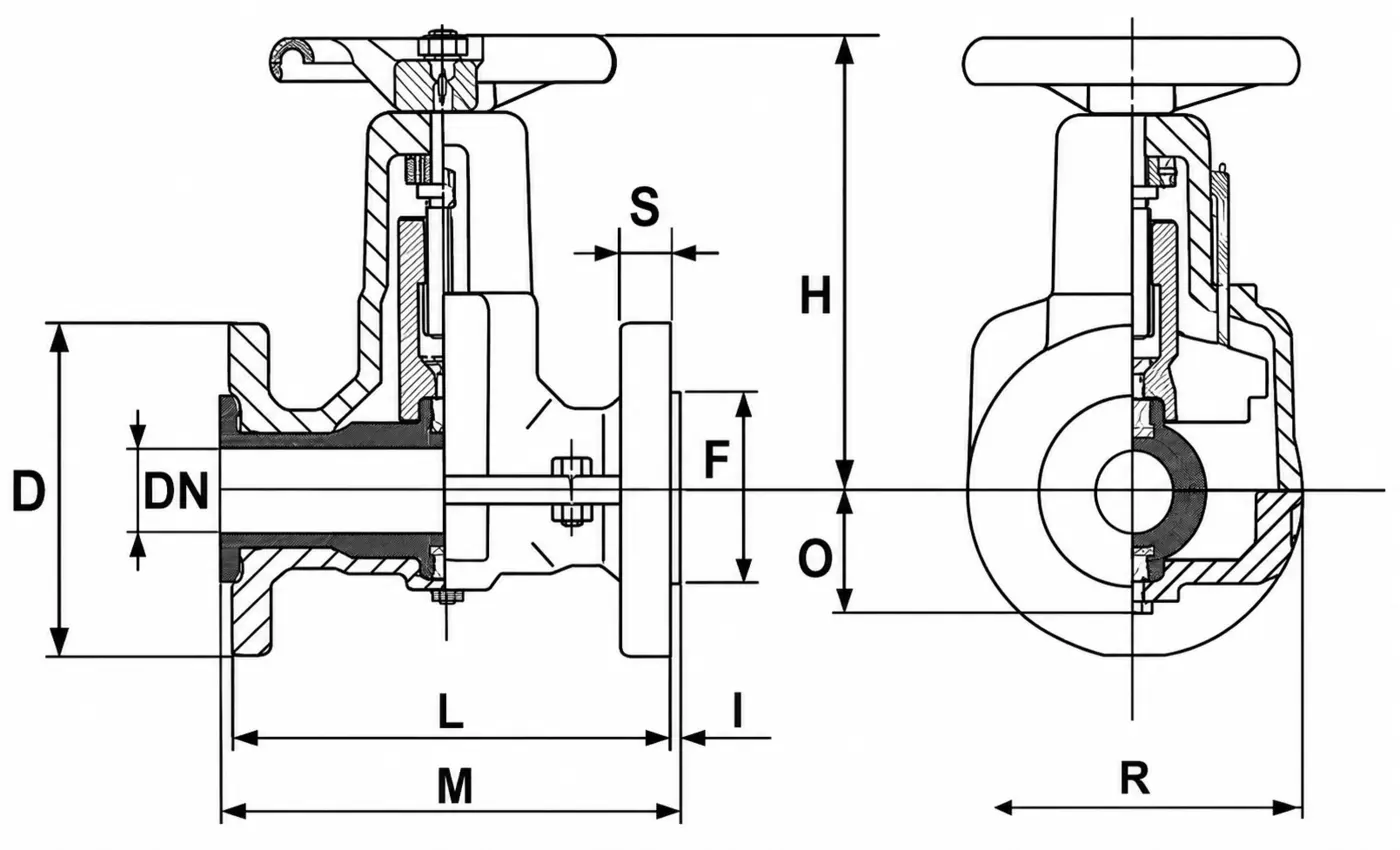

Dimensions of handwheel valves, Type TN 2014B (short version) (dimension sheets available on request) | DN 10 – DN 60

DN	D	F	H	I	L	M	O	R	S
10	90	44	80	2	70	75	25	54	14
12	90	44	80	2	70	75	25	54	14
15	95	44	85	2	75	80	28	70	14
20	105	44	85	2	75	80	28	70	16
25	115	60	140	5	105	115	40	90	16
32	140	60	140	5	105	115	40	90	18
40	150	78	170	5	150	160	50	125	18
50	165	108	185	5	200	210	55	140	20
60	185	108	185	5	195	205	58	150	20

Dimensions of handwheel valves, Type TN 2015B (short version) (dimension sheets for other valve types available on request) | DN 65 – DN 250

DN	D	F	H	I	L	M	O	R	S
65	185	123	280	5	250	260	95	210	20
80	200	140	370	10	250	270	105	250	22
100	220	160	360	10	300	320	125	280	22
125	250	210	500	10	300	320	140	330	24
150	285	240	575	10	300	320	160	370	24
200	340	295	730	10	340	360	200	460	26
250	395	365	870	10	500	520	250	600	28

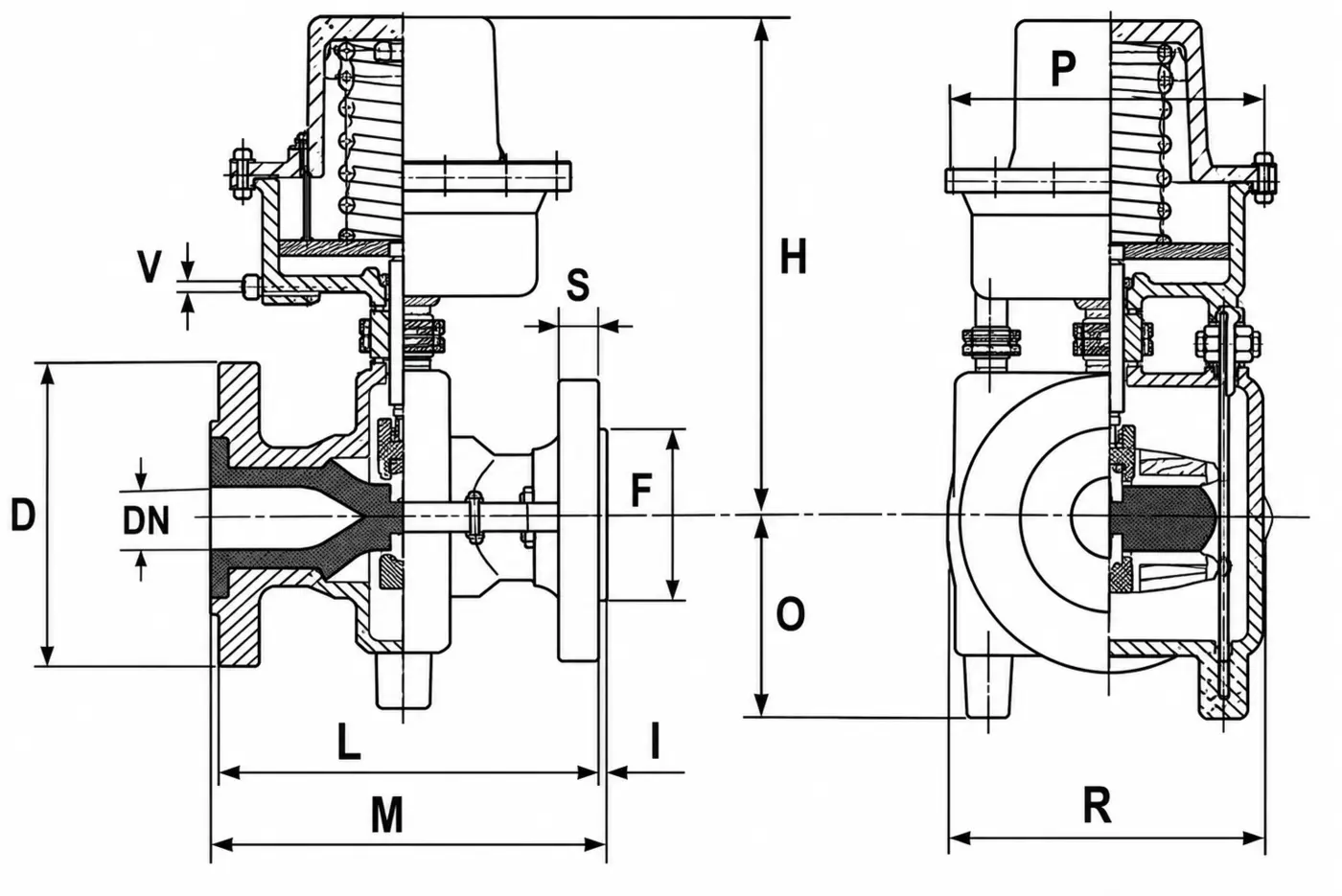

Dimensions: Spring-closed, compressed air-operated valve, Type TN 2022 (dimension sheets for other valve types available on request) | DN 10 – DN 200

DN	D	F	H	I	L	M	O	P	R	S
10/12	90	44	245	2	130	135	25	150	76	14
15	95	44	245	2	130	135	28	150	80	14
20	105	44	253	5	150	160	28	150	80	16
25	115	60	265	5	160	170	40	150	115	16
32	140	60	265	5	180	190	40	150	115	18
40	150	78	365	5	200	210	50	200	135	18
50	165	108	380	5	230	240	55	200	165	20
65	185	123	400	7	290	305	60	200	185	20
80	200	140	560	10	310	330	180	285	250	22
100	220	160	575	10	350	370	205	285	300	22
125	250	210	920	10	400	420	210	375	330	24
150	285	240	940	10	480	500	245	375	400	24
200	340	295	1100	10	600	620	320	450	460	26
