PREMA-SERVICE
Agitation technology for large storage and oil tanks

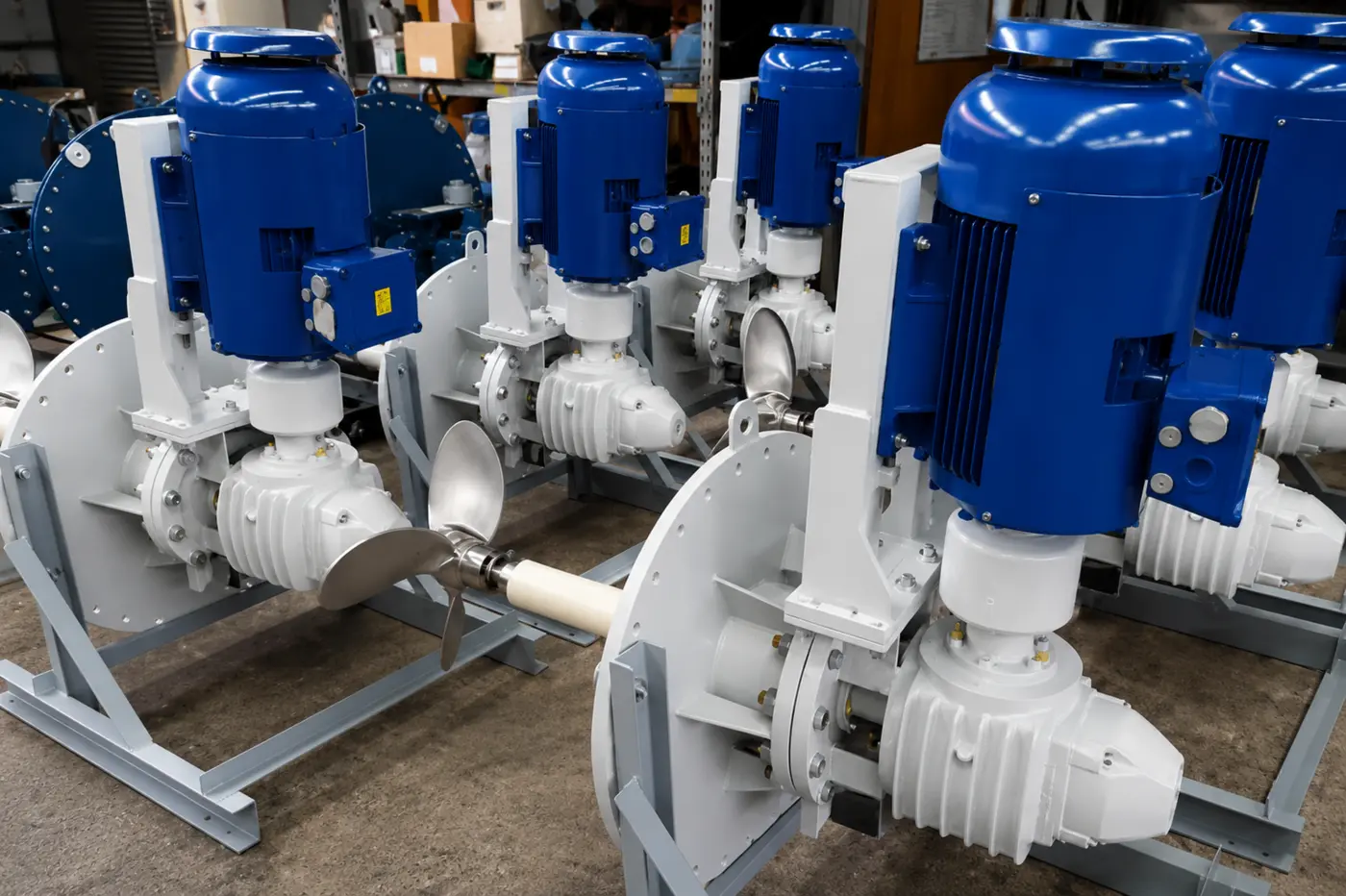

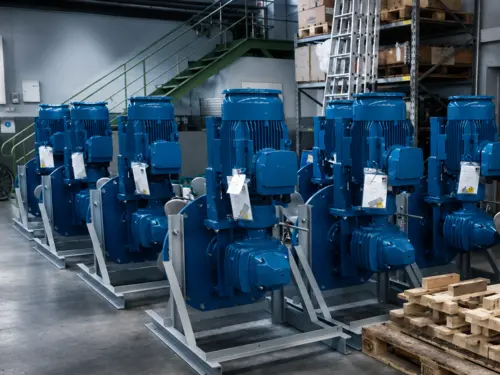

Side-entry mixers
PREMA-SERVICE side-entry tank mixers are designed for efficient agitation and homogenisation in large storage and oil tanks. They are mainly used in the chemical and petrochemical industries, in refineries, and in wastewater treatment. As robust tank agitators, they are particularly suitable for large tanks with diameters of up to 120 m.
Their functions include the effective mixing of liquid tank contents, the targeted removal of sediment deposits and the maintenance of a constant temperature within the tank (power range 5–55 kW).
All models of our agitators are designed as part of a modular system to ensure the greatest possible interchangeability of spare parts. This enables rapid repairs or the retrofitting of additional components. Maintenance is straightforward and designed for extended intervals. The special design results in an extremely compact build, thereby exerting very little torque on the tank wall; consequently, neither bracing nor supports are required.
Agitator variants for different applications
Product range
Our tank agitators are available in various versions:
- Fixed version (F, fixed-type) for homogenising/blending refinery products and chemical products
- Swivel-type (S) for preventing sediment build-up in crude oil or in storage tanks, and for blending different crude oil products
- High-temperature version (HT), suitable for use up to 220°C (428°F, 493.15 K), e.g. for bitumen
- Version with double mechanical seal (for all F, S and HT mixers)
- Custom sizes and special mixers available
All mixers are also available with ATEX marking EX X II 2G EEx c, k, d T4 in accordance with the Explosion Protection Directive 2014/34/EC (Zone 1).
Compact agitator technology for easy installation
Product features
Our agitators stand out thanks to their compact design
- Can be fitted to tanks without any additional support
- Low vibration on the tank wall
- Easy to install
Servicing with a full fuel tank

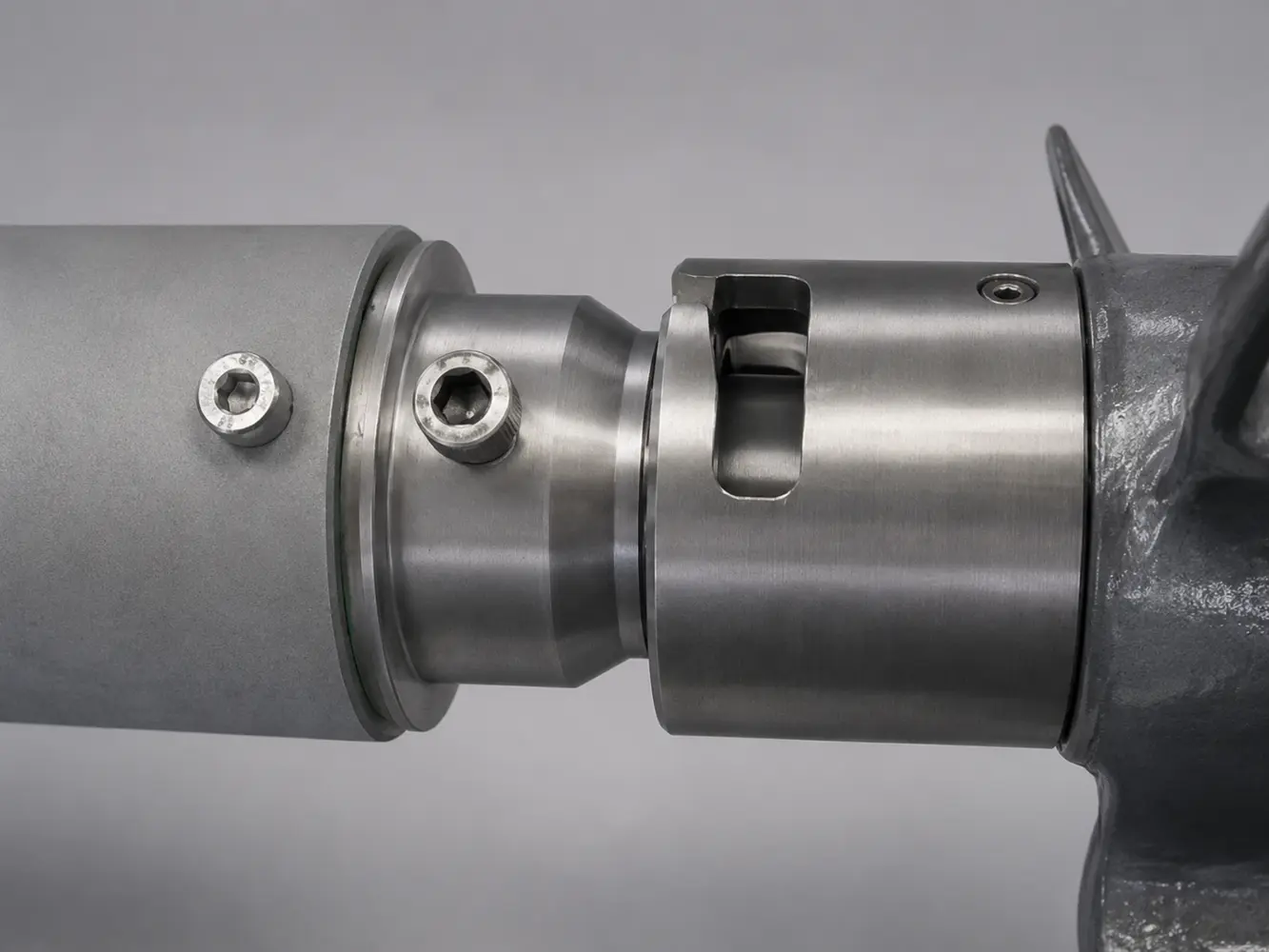

Static seal
- Easy to activate
- Resistant to wear and corrosion
Repair and maintenance work can be carried out easily whilst the tank is full, e.g. replacing the mechanical seal
Sealing technology for safe agitator operation

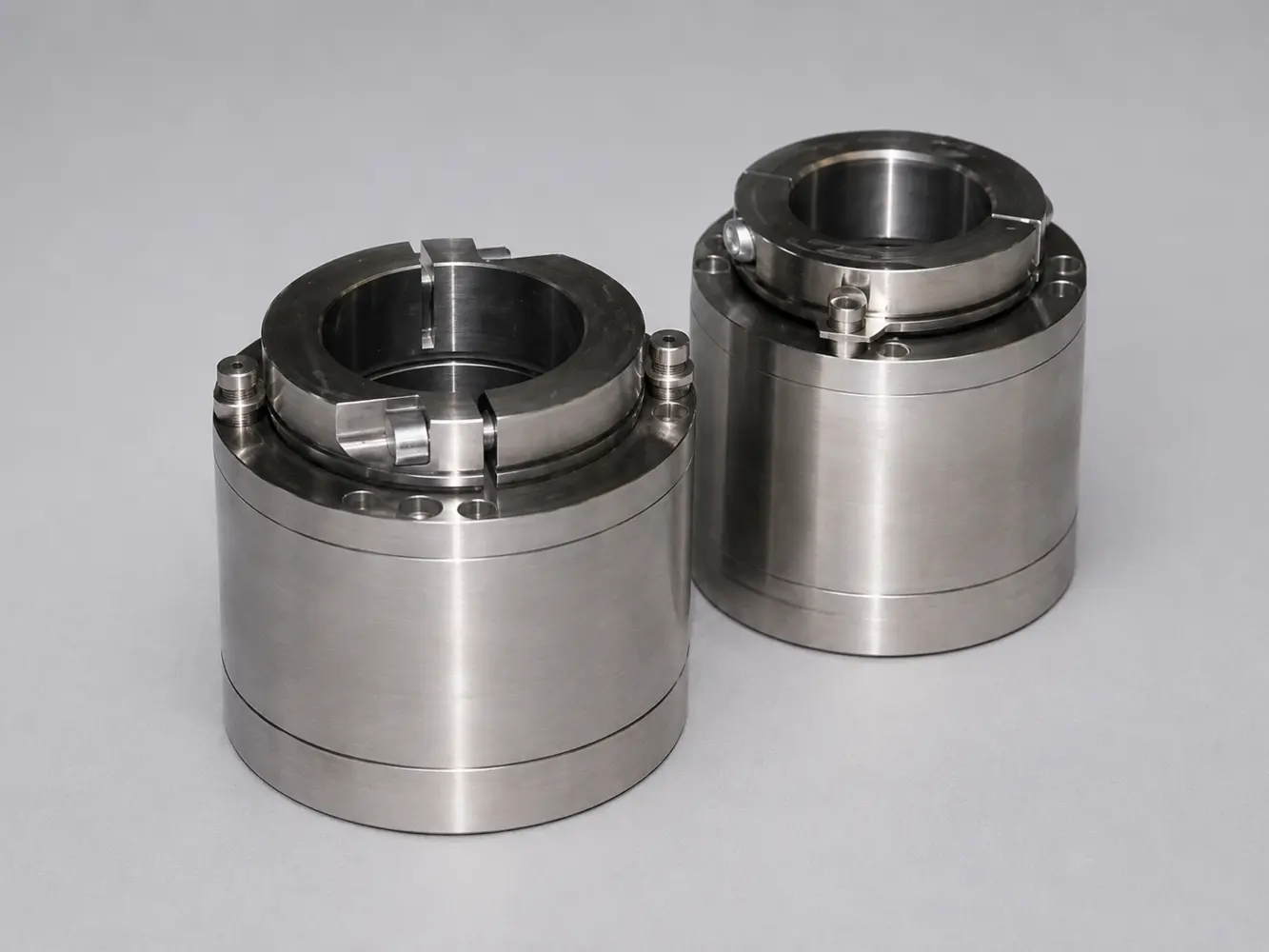

Mechanical seal
The tried-and-tested, durable mechanical seal used in our tank agitators is fitted at the rear end of the shaft. This enables us to ensure maximum protection for the entire system, as well as ease of replacement and repair. The mechanical seal is available in several variants and is selected according to the product.
Efficient mixing of large tank volumes
Marine high-flow propeller
All Prema-Service tank agitators are fitted with optimised marine high-flow propellers, which offer the following advantages:
- High efficiency
- Welded construction
- High balance class in accordance with DIN ISO 1940-1, resulting in very smooth operation
- Available in steel or stainless steel
- Uniform distribution of tank contents
- Prevention of sediment build-up
Smooth-running gearbox technology for a long service life

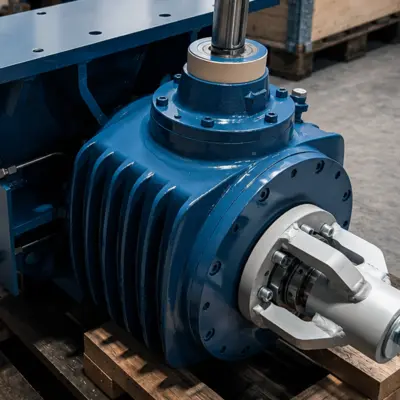

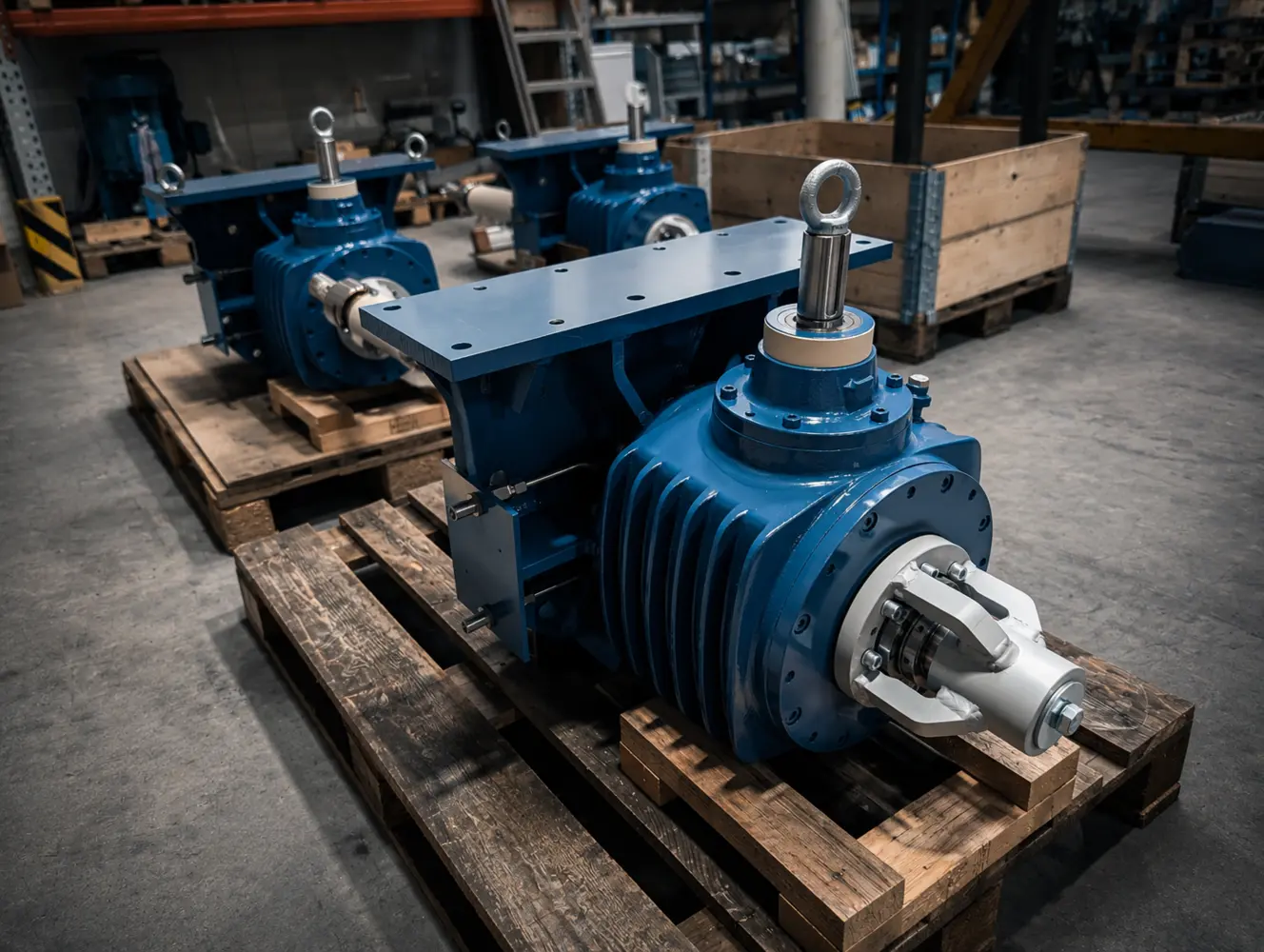

Gearbox
The unique design of the gearboxes offers many advantages:
- solid shaft
- smoothest possible operation
- low wear
- low maintenance requirements
- maximum protection against overload
Early-warning systems for safe agitator operation
Surveillance equipment
In order to detect operational problems at an early stage (e.g. damage to the propeller caused by foreign objects in the tank), continuous monitoring of the key parameters is recommended. Relevant parameters include the vibration of the agitator assembly, leakage from the mechanical seal and the temperature of the gearbox.
Monitoring can be carried out using both portable measuring devices and permanently installed monitoring systems, although only permanently installed systems can ensure that any necessary intervention takes place in good time. These systems also offer the possibility of automating safety measures.
We offer the following systems for this purpose:
- Vibration monitoring
- Gearbox temperature monitoring
- Leakage monitoring (visual and electrical) for mechanical seals
The measuring systems are permanently attached to the agitator and consist of a sensor, a terminal box and the associated cabling. The associated control cabinet with measurement data analysis is also available as a complete solution. All components are also available for Ex Zone 1.
Options for greater functionality and flexibility
Additional facilities
Automatic swivelling (S version)
Various versions of the automatic swivel mechanism are available, ranging from a simple, continuously operating swivel mechanism to a PLC-controlled swivel mechanism with position detection and programme control.
- Mechanical automatic swivelling (S; swivel type) (continuous)
- Electric automatic swivelling (S; swivel type) (optionally constant)
- Automatic electric swivelling with position monitoring (S; swivel type)
Our tank agitators are available in various versions:
- Fixed version (F, fixed-type) for homogenising/blending refinery products and chemical products
- Swivelling version (S, swivel-type) for the additional prevention of sedimentation in crude oil or storage tanks and for blending different stored products
- High-temperature version (HT), suitable for use up to 220°C (428°F, 493.15° K), e.g. for bitumen
- Version with double slide ring seal (for all F, S and HT agitators)
- Custom sizes and special agitators available
All mixers are also available with ATEX marking EX X II 2G EEx c, k, d T4 in accordance with the Explosion Protection Directive 2014/34/EC (Zone 1).
